![MINIX NGC NR660 Mini PC [US]](http://www.minix.com.hk/cdn/shop/files/NR660-main.jpg?v=1739183786&width=1600)

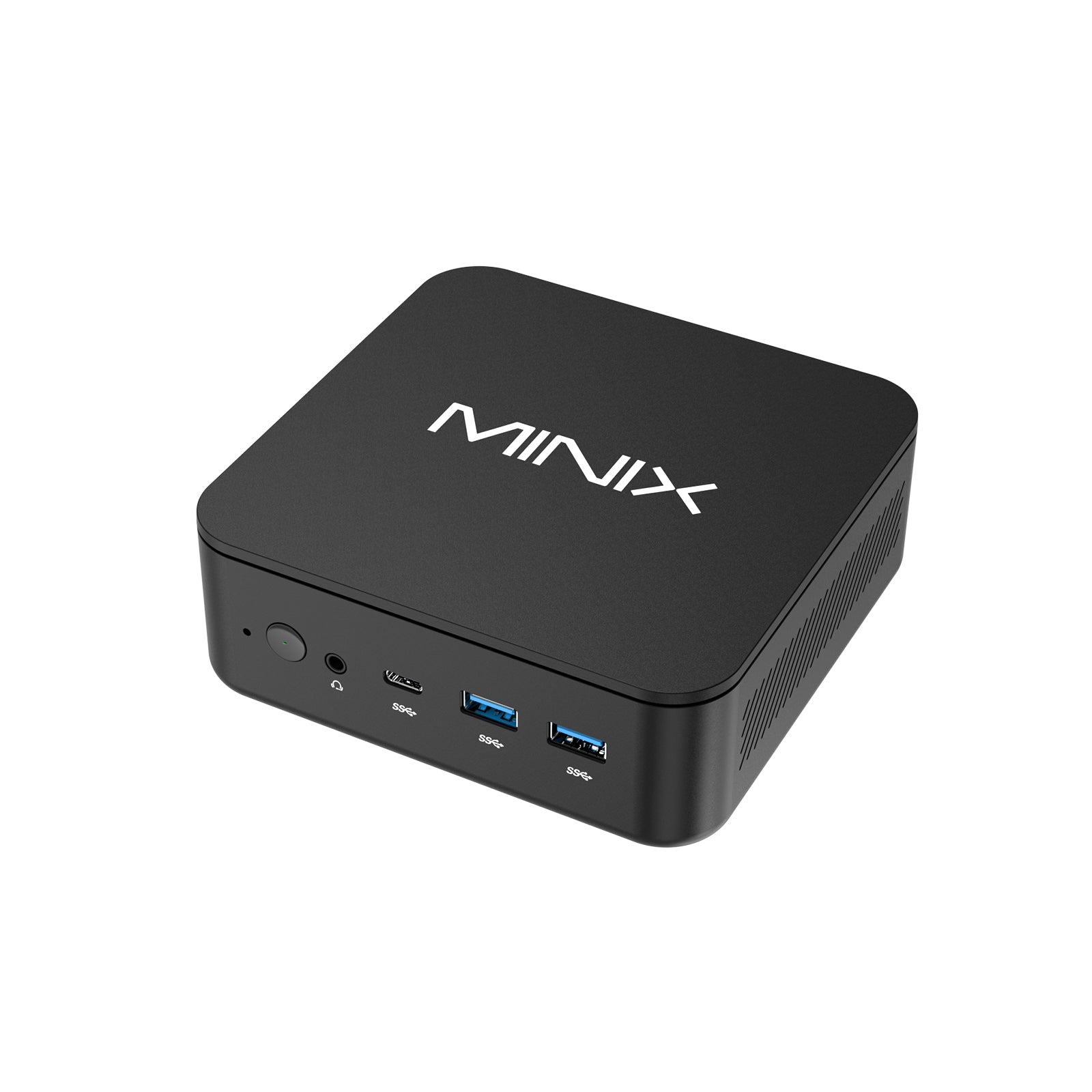

MINIX NGC NR660 Mini PC [US]
AMD Ryzen 5 6600H CPU & Radeon 660M Graphics
Featuring the AMD Ryzen 5 6600H processor (6 cores, 12 threads) and integrated Radeon 660M graphics, this mini PC offers smooth and responsive performance for office tasks, content creation, or enjoying casual gaming.
Fast DDR5 RAM Memory & 512GB NVMe SSD Storage
Equipped with 16GB DDR5-4800MHz RAM and a 512GB PCIe 3.0 NVMe SSD, this system delivers fast boot times and smooth performance even with demanding applications. It features dual DDR5 SO-DIMM slots supporting up to 64GB of memory and dual M.2 PCIe 4.0 x4 slots supporting up to 8TB of total storage—ideal for users handling large files or planning future upgrades.
Seamless Connectivity with Dual 4K Display Support
Experience next-gen connectivity with versatile I/O options including 1 USB4, 3 USB 3.2 Gen2, 1 USB 2.0, HDMI 2.0, DisplayPort, a 3.5mm audio combo jack, and 2 2.5G LAN ports—perfect for connecting external GPUs, high-speed drives, dual monitors, or audio gear. Both HDMI 2.0 and DisplayPort support dual 4K displays at 60Hz, delivering smooth multitasking, enhanced productivity, and immersive entertainment.
Fast Wi-Fi 6E & Dual 2.5G Ethernet for Reliable Networking
Stay connected with the latest Wi-Fi 6E standard, offering faster speeds, lower latency, and improved stability on 2.4GHz/5GHz/6GHz bands. Dual 2.5G Ethernet ports deliver stable, high-speed wired connections for seamless online work or streaming.
Compact Design & Ready to Use
This mini PC is stylish and can be easily placed anywhere, from the desktop to behind the monitor. It weighs only about 460 grams, is pre-installed with Windows 11 Professional (64-bit), and supports multiple languages. It has passed CE, FCC, RoHS, and PSE certifications, is safe and reliable, and can be used worldwide.
If you have B2B order needs, please contact us.
Pay with Ease
![MINIX NGC NR660 Mini PC [US]](http://www.minix.com.hk/cdn/shop/files/NR660-main.jpg?v=1739183786&width=1600)

AMD Ryzen™ 5 6600H (64-bit)

Triple Display with 4K@60Hz Video Outputs

AMD Radeon™ 660M

802.11AX Triple Band WiFi 6E

M.2 PCle 3.0 x4 SSD

Active Cooling Design

Dual Gigabit Ethernet

Windows 11 Pro

Home Theater

Office

Education
Specifications
Brand: MINIX
Name: NGC PRD
Model: NR660
Color: Black
Material: Full Plastic
CPU: AMD Ryzen™ 5 6600H (12 Core, 12M Cache, up to 5.1 GHz)
GPU: AMD Radeon™ 660M
DDR: 16GB DDR5-4800MHz
DDR Slot: 2×DDR5 SO-DIMM (Up to 64GB, Not included)
SSD: 512GB M.2 2280 PCIe 3.0×4 SSD
SSD Expansion: M.2 2280 PCIe 4.0×4 SSD Slot
Type: RZ616 MT7922A22M, BT5.2
Front Button: 1 × Power Button with White LED
Front Audio Jack: 1 × Audio Output Combo Jack
Front USB Type A: 2 × USB-A 3.2 Gen2
Front USB Type C: 1 × USB-C 4.0 (Input 100W, Output 15W, 40Gbps) 4K@60Hz
Front Reset: 1×Button
Rear USB Type A: 1 × USB-A 2.0
Rear USB Type A: 1 × USB-A 3.2 Gen2
Rear HDMI: 2 × HDMI 2.1 TMDS 4K@60Hz
Rear USB Type_C: 1×TBT4 (8K@60Hz) (DP, PD, Data)
Rear DP: 1×DP1.4 4K@60Hz
REAR RJ45: 2×RJ-45 2.5G Ethernet
Rear DC Jack: 1×Input AC 100~240V, Output 19V 5A 95W Max, DC 2.5/5.5mm (Support RTC, EU US UK Adapter)
Type: OS
System: Windows 11 Pro
Language Supported: Support Multi-language
Type: FCC CE UKCA ROHS WEEE PSE
Model: MT7922A22M
Contains FCC ID: RAS-MT7922A22M
Contains IC: 7542A-MT7922A22M
CMIIT ID: 2021AJ12359(M)
NCC ID: CCAI21Y10050T2
IMDA Standards: DB02941
ICC ID: R-C-MD6-MT7922A22M
TELEC RF: 020-210086
TELEC TEL: D210041020
Operating Temperature: 0~50°C @5~80%RH
Storage Temperature: -20~70°C
Relative Humidity: 10~95% RH @ 40°C/104°F, Non-Condensing
Product Dimension: 130×127×46.9mm
Package Dimension: 182×172×112 mm
Product Weight: 483g
Package Weight: 1463g
