NEO Z83-4 MAX is designed to meet the diverse needs of industrial commercial applications; an ideal Digital Signage, POS and Thin Client Solution. NEO Z83-4 MAX is a fully configured, complete system pre-installed with 4GB DDR3L memory, 128GB eMMC 5.1 (MLC) internal storage and Windows 10 Pro OS. No setup or installation required.
Thanks to its Intel integrated graphics GPU engine, NEO Z83-4 MAX produces super detailed, crystal-clear 4K @ 30Hz imagery. Enjoy a rich multimedia experience and Ultra-High Definition vibrant visuals. With HDMI and Mini DisplayPort outputs, NEO Z83-4 MAX is Multi-Display Ready (support up to two displays), which makes navigation between applications easier and improves productivity.
NEO Z83-4 MAX’s smart thermal design allows it to run at an incredibly low operating temperature. Its fanless, passive cooling design incorporates a large surface area for ventilation that maximizes heat dissipation and keeps NEO Z83-4 MAX operational even under the most strenuous tasks. Another advantage of its fanless design is NEO Z83-4 MAX’s ability to seamless operate without a whisper of noise, guaranteeing zero disturbance during usage. Designed for low power consumption, NEO Z83-4 MAX is ultra-energy-efficient, delivering long-term energy cost savings.
NEO Z83-4 MAX delivers a desktop experience in a fraction of the size and weight, allowing for easy integration into any places with limited space. The super compact NEO Z83-4 MAX comes packed with connectivity options including Dual-Band 802.11ac Wi-Fi, Gigabit Ethernet, Bluetooth 4.2, HDMI, Mini DisplayPort, USB 3.0 and more. An auto power-on option can be enabled within NEO Z83-4 MAX’s BIOS menu, removing the need to manually power back on after a power outage.
Intel X5-Z8350 (64-bit)
Intel HD Graphics
4GB DDR3L
128GB eMMC
802.11ac Dual-Band Wi-Fi (2.4GHz/5.0GHz)
Bluetooth 4.2
Windows 10 Pro (64-bit)

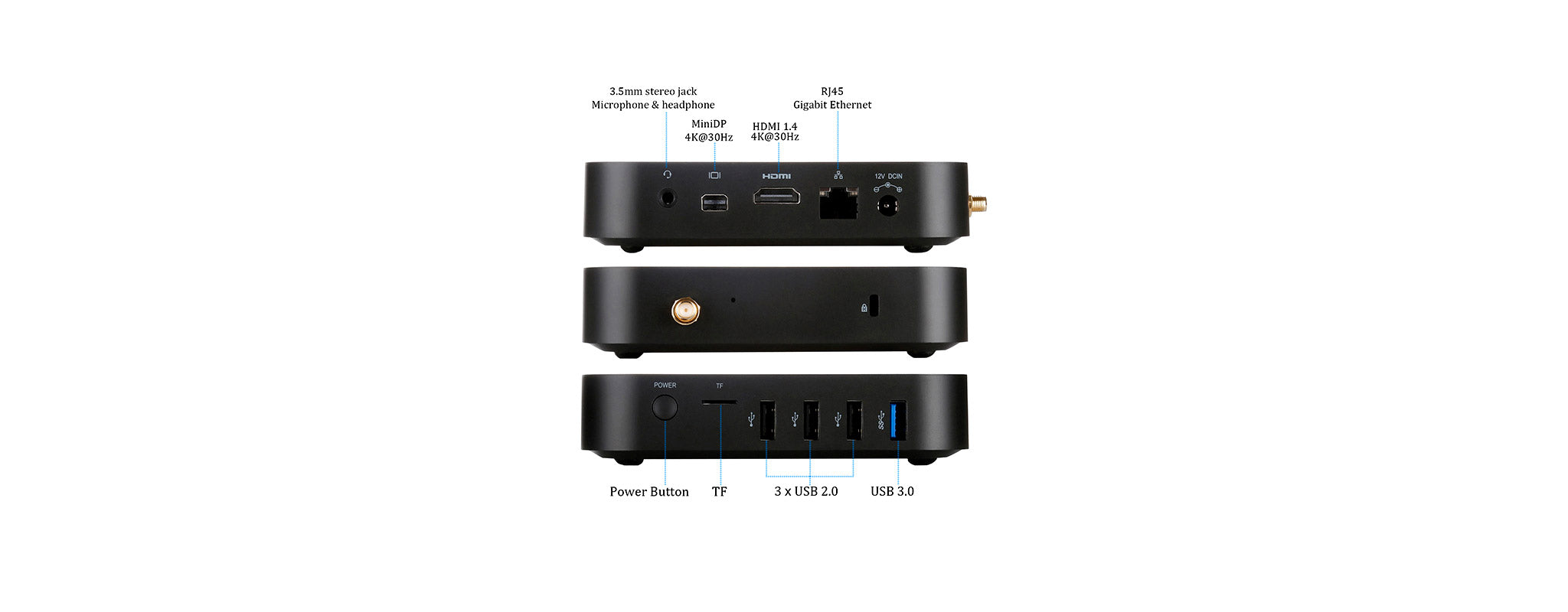

HDMI™ 1.4 (4K @ 30Hz)
Mini DisplayPort
Via HDMI™ 1.4
3.5mm audio jack
3.5mm audio jack
RJ-45 Gigabit Ethernet
Micro SD card reader
USB 2.0 port x 3
USB 3.0 port x 1
Kensington lock ready
DC 12V, 3A adapter (included)
MINIX NEO Z83-4 MAX comes pre-installed with Windows 10 Pro Edition.
No, MINIX NEO Z83-4 MAX only supports variations of Windows 10 OS.
No, it is not possible to increase the internal memory of MINIX NEO Z83-4 MAX.
MINIX NEO Z83-4 MAX comes pre-installed with 4GB DDR3L RAM. Both the RAM and eMMC storage are fixed, neither can be changed or upgraded.
No, it is not possible to increase the internal storage of MINIX NEO Z83-4 MAX.
MINIX NEO Z83-4 MAX comes pre-installed with 64GB eMMC. We recommend using an external HDD or micro SD card to increase the total storage capacity.
MINIX NEO Z83-4 MAX supports micro SD cards up to 256GB capacity. We tested using a Samsung EVO 256GB micro SD card.
